自作楽器博物館 - Homemade Instruments Museum TOP > 2016年03月

PVCパイプで作った霧笛|笛

笛03


PVCパイプで作った霧笛|笛
なるほどこういう仕組みか。汽笛はリコーダーでこっちは膜が震えます。これはなかなか仕組みがおもしろい。

How To Make A Fog Horn - Easy PVC Design
How to make a simple Air Horn. These horns are LOUD! They can be scaled up as I show in the video, but be aware that the bigger you make them the more air they will take to function. Get your free audio book from Audible here: http://adbl.co/17ujzYW (I finished The Martian, highly recommended)
Parts used for this project (small version)

笛の続きを読む


関連記事
[ 2016/03/24 16:50 ] | TB(-) | CM(-)

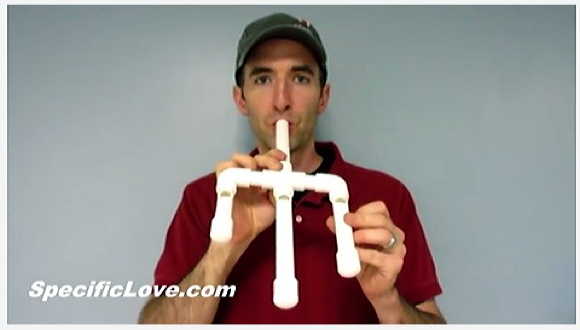

PVCパイプで作ったトレインホイッスル|笛

笛ピクチャ02


PVCパイプで作ったトレインホイッスル|笛
汽笛か。親子で顔がそっくりです。

Awesome Train Whistle with PVC – How to make
Today I will show you how to make a simple train whistle with multiple tones using some PVC. This design consists of 3 individual whistles combined to make the familiar train whistle sound.
To make this project, you will need some 1/2-inch PVC pipe & fittings, a 5/8-inch wooden dowel, a saw, a hammer, a ruler, and a metal file or sand paper.
I first cut the PVC into 4, 6, and 8 inch pipes. These lengths are important because they help determine the tone of each pipe. It is possible to tune each whistle to a specific musical key by adjusting the lengths further, but I wanted to keep it simple, so I chose 4, 6, and 8.
Next cut a notch about 1-inch from one end of the first pipe. The angle of the notch is important to help make the sound. The first cut needs to be at a 90 degree angle. The second cut needs to be at 45 degrees. Both cuts need to intersect about half way through the pipe.
Now take the wooden dowel and place it next to the pipe on the notch side. Cut a piece just shorter than the small section of the pipe. Then using a file, flatten one side of the wood, removing around 1/8 of the diameter.
Next the dowel needs to be hammered into the PVC.
MAKE SURE THE FLATTENED SIDE IS FACING OUT TOWARDS THE NOTCH.
The dowel needs to be inserted until the front edge is level with the 90 degree cut of the notch.
Then repeat these steps for the other two pipes.
The rest of the assembly is pretty simple.
Placing an end cap on the long side of the PVC should complete each whistle. Test each one to make sure it works and make adjustments if needed.
Using some additional pipe and fittings, I combined all three pipes together to make the train whistle sound. The sizes and lengths of these additional pieces are not critical, so customized them as you wish.
Now you can have fun with your new whistles!

ACME アクメ 擬音笛 汽笛 小 AC536 【国内正規品】

笛の続きを読む


関連記事
[ 2016/03/14 08:50 ] | TB(-) | CM(-)

エレクトリックミュージカルソウの演奏です|ノコギリ

ミュージカルソウ

エレクトリックミュージカルソウの演奏です|ノコギリ
ずいぶんともったいぶってやっていますが、たいしたことはしていません。

Sine Linea - For Musical Saw and Electronics
Performer: Michele Rabbia
Music by Maurizio Giri and Michele Rabbia

ノコギリの続きを読む


関連記事
[ 2016/03/05 22:44 ] ノコギリ | TB(-) | CM(-)

PVCパイプで作った汽車の笛|笛

笛ピクチャ01


PVCパイプで作った汽車の笛|笛
よくできています。笛は意外と作るのがめんどうでやったことがありません。
BellowsTrain Whistle
The whistles are loud and very realistic sounding. The bellows provides the air to blow the whistles. All the parts are easy to find. The project does not require any special skills.
The whistles are made from standard 3/4" I.D. PVC. The whistles are tuned to Bb, D, F, and G. The whistles are approximately 7" (Bb), 8" (D), 9" (F) and 10" (G) without the end caps and 90 degree elbows.
If you would like to have more detailed instructions on how to build this train whistle, go to Amazon. com, kindle book section, and search for "BELLOWS TRAIN WHISTLE". The construction manual contains over 70 photos and diagrams along with step by step detailed instructions.
The bellows cloth is imitation leather (Naugahyde) found at most fabric stores.

ACME アクメ 擬音笛 汽笛 小 AC536 【国内正規品】

笛の続きを読む


関連記事
[ 2016/03/04 01:50 ] | TB(-) | CM(-)
